Zeagle ENVOY II REGULATOR
Tab title

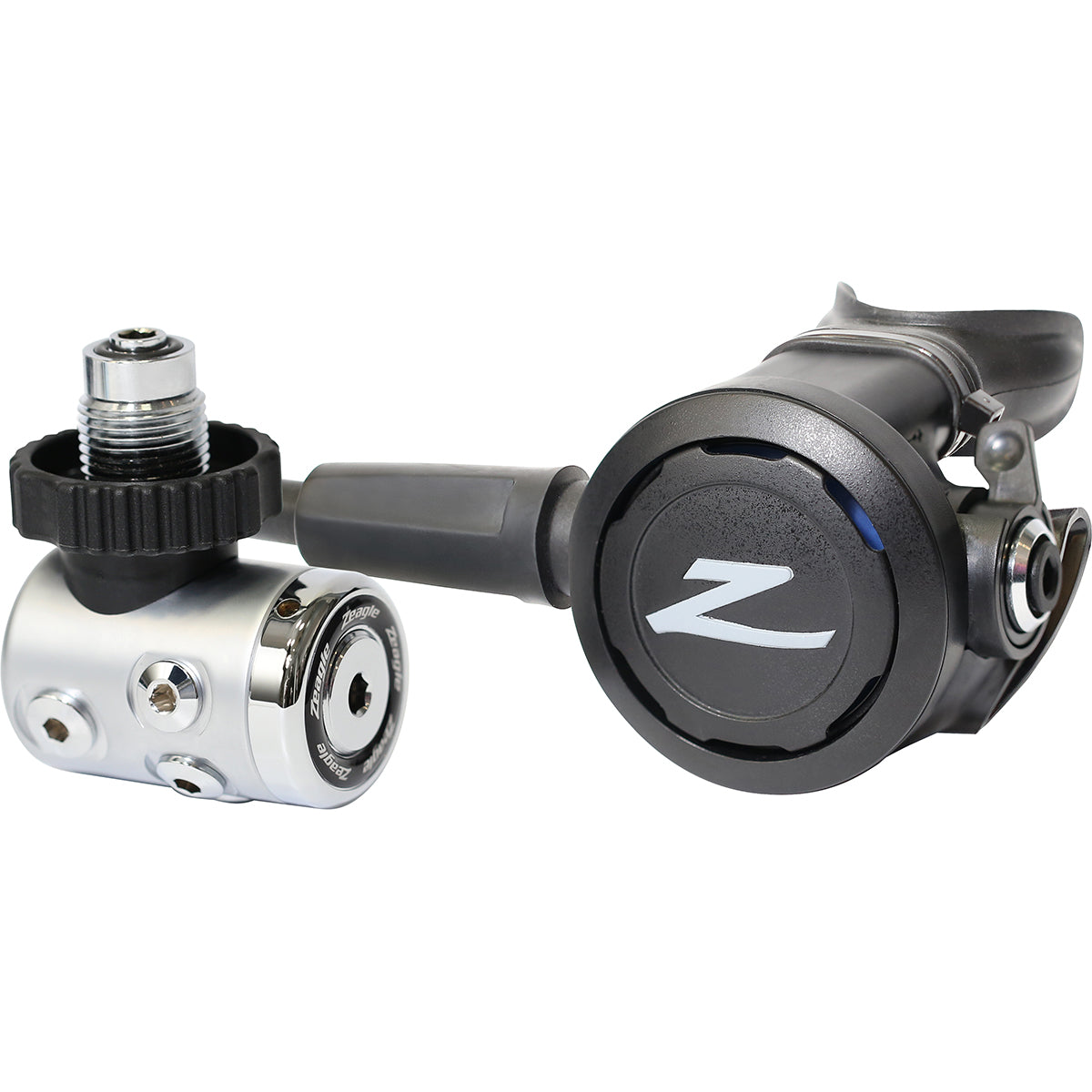

Zeagle ENVOY II REGULATOR
Tremendous value. Uncompromising performance.
The Envoy II is an incredible value, meeting or exceeding the performance of regulators that cost much more.
Envoy II is an economical regulator that doesn’t compromise on performance or reliability. Its lightweight first stage, with balanced diaphragm, is available in DIN or Yoke, and its 2nd stage has a downstream valve and Dive/Pre-dive Venturi control (with 30″ hose length).
Light and comfortable, the Envoy II Second Stage is compact enough to use as a backup but robust enough to rely on as your primary go-to regulator.
SPECS
| OVERVIEW: | |
| DRY WEIGHT | 2.4 lbs / 1.1 kg |
| HP/LP | 2/5 PORTS |
| ENVIRONMENTALLY SEALED | No |
| BRAIDED HOSE | No |
| SERVICE INTERVAL | 1 YEAR |
ENVOY II FIRST STAGE FEATURES:
- An economical, yet top-performing regulator
- High Performance Porting
- Conical Precision HP valve
- Balanced Diaphragm
- Yoke or DIN inlet available
- 5 Low Pressure Ports (3/8”-24 UNF)
- 2 High Pressure Ports (7/16”-20 UNF)
- Weight 1.88 lbs (.89 kg)
- Intermediate Pressure: 135-150 psi (9-10 bar)
ENVOY II SECOND STAGE FEATURES:
- Downstream valve
- Venturi lever gives you free-flowing control and helps deliver smooth, reliable breathing
- Balanced Diaphragm
- Weight: .42 lb. (.26 kg) (w/o hose)
- Hose Length: 30 in. (.76 m)
First Stage Materials:
Body: Brass
O-Rings: Buna-N
Seat: Advanced Polymer
HP Valve: Stainless Steel
Second Stage Materials:
Cover: Flexible thermoplastic
Case: Thermoplastic
Poppet Seat: Elastomer
O-rings: Buna-N
Diaphragm:
Exhaust Valve: Elastomer
Mouthpiece: Silicone
